Reliability is key with every SAM Feed Wagon constructed with plenty of stainless and longevity in mind. Complexities are designed out, to make sure they are simple for you to use and your team to maintain throughout the years.
Each wagon gives a consistent stream of feed with solid throw. They cope well with a wide variety of feed such as maize, grass silage, Palm Kernel and green feed.
Six, nine, ten, twelve and fifteen cube models make up the range.
Every machine comes with a stainless steel chain side-feed or a simple centre-feed delivery system (for paddock feeding).
If even more accuracy is what you are after, you can add smart tech with the addition of weigh scales. These give the weight of feed in your bin at any given time.
Fully stainless side panels and fronts
Strong stainless front panel and sides mean your machine is built to last. Front panel holes can be customised to your requirements, helpful if you are feeding out fine product.
The paintwork is long lasting
The special process for chassis paintwork includes shot blasting, priming and a two-pot paint finish

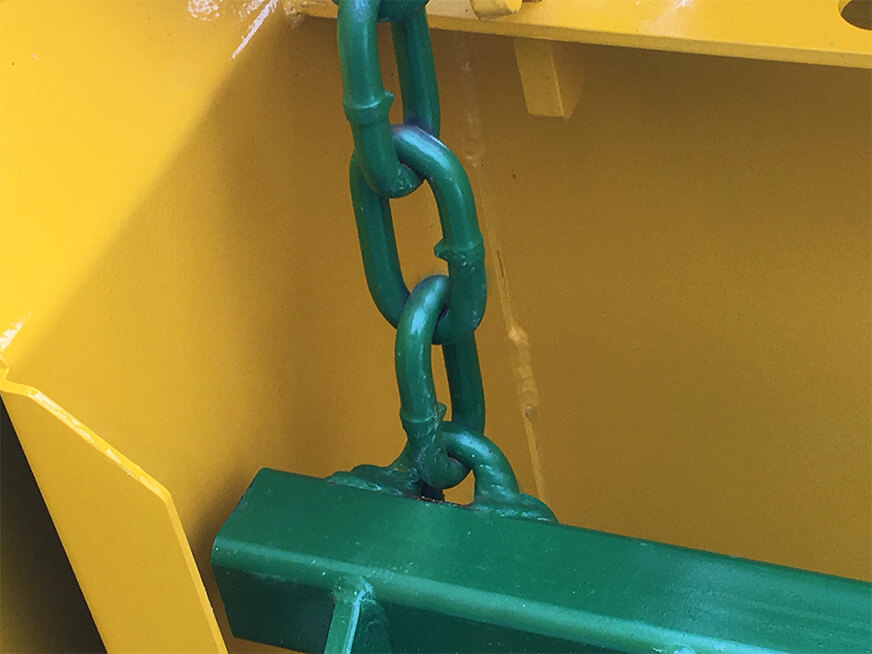

Super strong ten millimetre calibrated snig chains are used
Strong impact resistant deck
Trans Tex ply timber is well-known for its flexibility and strength. It is used extensively across the trucking industry
Load weigh scales can be fitted retrospectively. They give smart, easy to use electronic weighing of feed in your bin. You can view weights via your Iconix FX15 screen and also on an App via Bluetooth.
Teaser bars designed for best grab and lift
Each tooth is separately welded to last long term and are designed for best grab and grip of feed. Superb for silage.
- Smart weighing
- Easy to access remote greasing
- Lights for on-road use
- Larger tyres
- Coupling with swivel
- Brakes on front hubs
- Skid for use with Auto Hitch
The smart load cell system provides a clear measure of the amount of material in the hopper. An Iconix FX15 screen is included with all SAM Feed Wagons with scales.
An easy measure of the weight of material spread, divided by the paddock area gives an accurate kilogram per hectare spread rate.
An app for viewing measurements on your mobile is also provided. This is Android only.
Easy to access remote greasing
All greasing points are accessed in a bank together in easy to access spots. This means maintaining your machine is simple. No need to get under the Wagon!
Lights for on-road use
You will need LED lights and hazard panels if you are travelling on the road. The flexible mounting boards are tough and hardy if knocked.
The LED lights plug straight into your power source. They are fully waterproof.
Our tyres have been chosen for their toughness and durability. We only go for very high quality options.
Tyre specifications can be adapted for your particular situation and terrain. We are happy to talk through custom options.
Six, nine and ten cube SAM Feed Wagons come standard with 11.5x15.3 tyres. Or you can upgrade to bigger 400x15.5 tyres. Bigger tyres can be suitable for softer, wet terrain.
Twelve cubic metre Feed Wagons have these 400x15.5 tyres included as standard.
The fifteen cube models have 500x17 tyres as standard.
Coupling with swivel
A fixed coupling is standard across the small Wagons. They can be upgraded to swivel coupling if need be. This can be great if you have large loads and varied terrain.
The twelve and fifteen cubic metre SAM Feed Wagons have the heavy swivel coupling as standard.
When you are using an Auto Hitch you'll require a donut eye on the coupling.
Brakes on front hubs
All tandem axle SAM's can have brakes fitted. They are positioned on the two front hubs.
Brakes are chosen for their longevity and have proven to be extremely reliable across the years.
Skid for use with Auto Hitch
If your Feed Wagon is going to be used with an Auto Hitch you'll need a skid added to the front of the machine.
Please let your sales person know so they can specify this at time of ordering. There is no additional charge for adding a skid.
- Axle Tandem - sixty millimetres
- Axle capacity 8,000kg
- Wheel type 11.5/80 x 15.3 12-ply
- Overall length 6.5m
- Overall width 2.56m
- Internal bin width 1.8m
- Internal bin height 1.22m
- Capacity 9m3
- Load weight (grass silage) 5.5T
- Load height 2.02m
Need help fast?
Contact your local dealer or call SAM for technical help and support.
SAM makes quality machines and stands by them. Every Feed Wagon goes through extensive quality and accuracy testing. All come with a comprehensive warranty.
