Installing spinner vanes

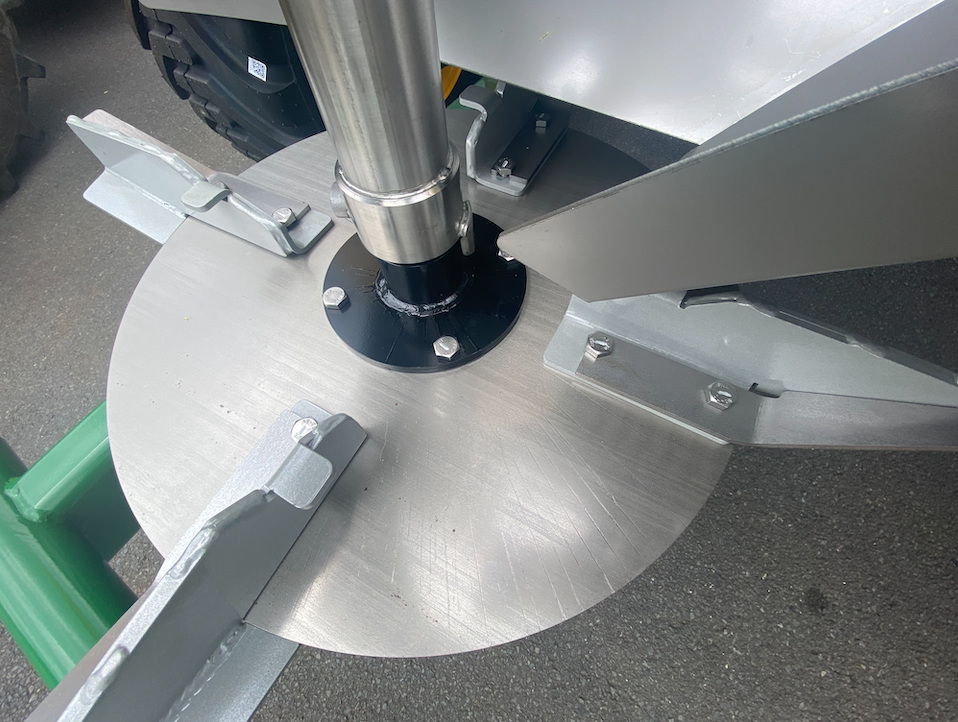

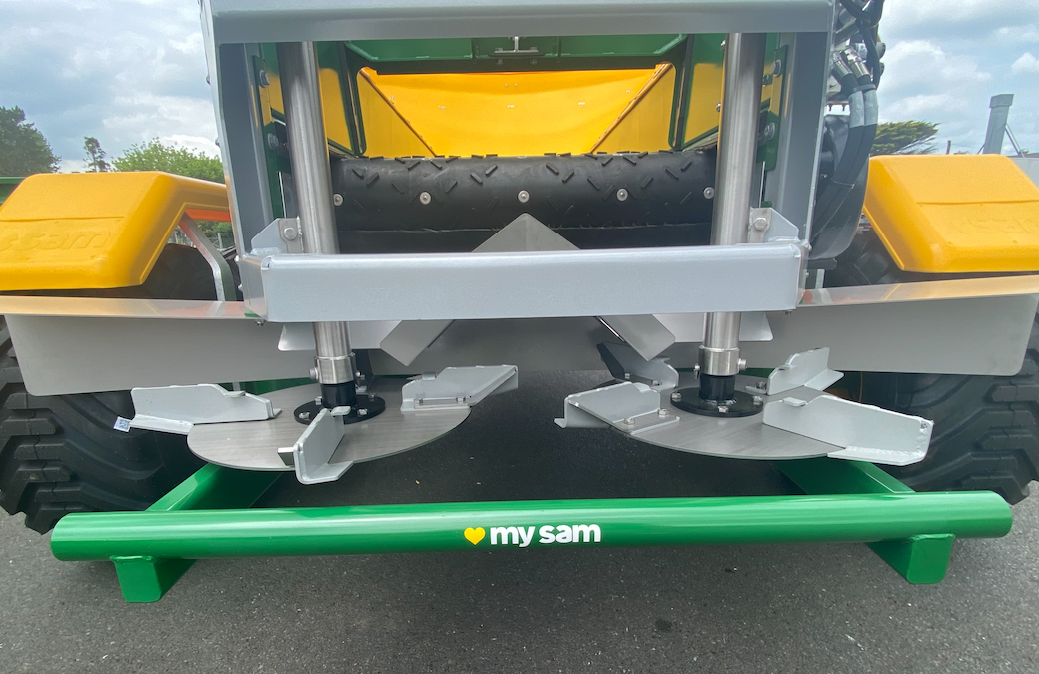

A) Make sure the two longer vanes are opposite one another. And both shorter vanes are opposite one another (on both discs).



B) Every vane should be welded on the outer edge of the discs as shown.



C) There are there are different vanes for the left-hand side disc and for the right-hand side disc.

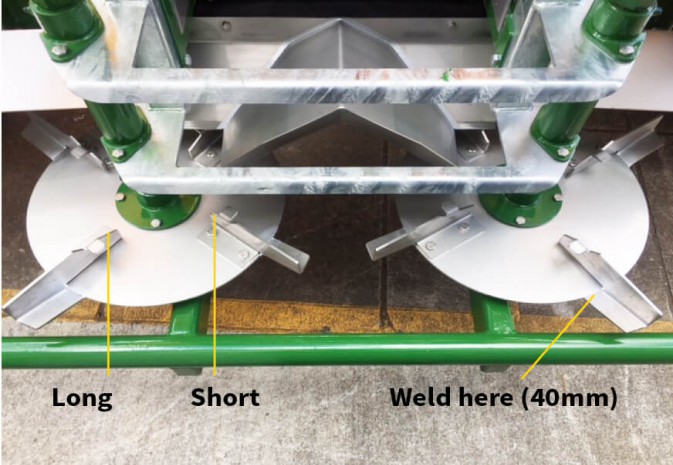

 Spinner disc How to 1 v2
