40mm pin
Simple, safe and strong.
This Auto Hitch saves you time and effort. It gives easy coupling from your tractor cab when using a variety of towed implements.
The SAM Auto Hitch stands upright unsupported. This means no manual lifting.
You have a great view of the pin from your cab and it gives quick alignment and when coupling to a three point linkage. You have a simple, easy pick-up every time.
The Quick Hitch is fully welded. It has been constructed with safety and strength in mind. SAM Auto Hitches are suitable for a whole range of towed machinery.
Tow pins come in a couple of sizes and are easy to change out if needed.
The larger pin is suitable for trailed implements up to 15 tonnes. The smaller pin is suitable for up to 12 tonnes.
A tow ball pin is also available.
Smart features
-

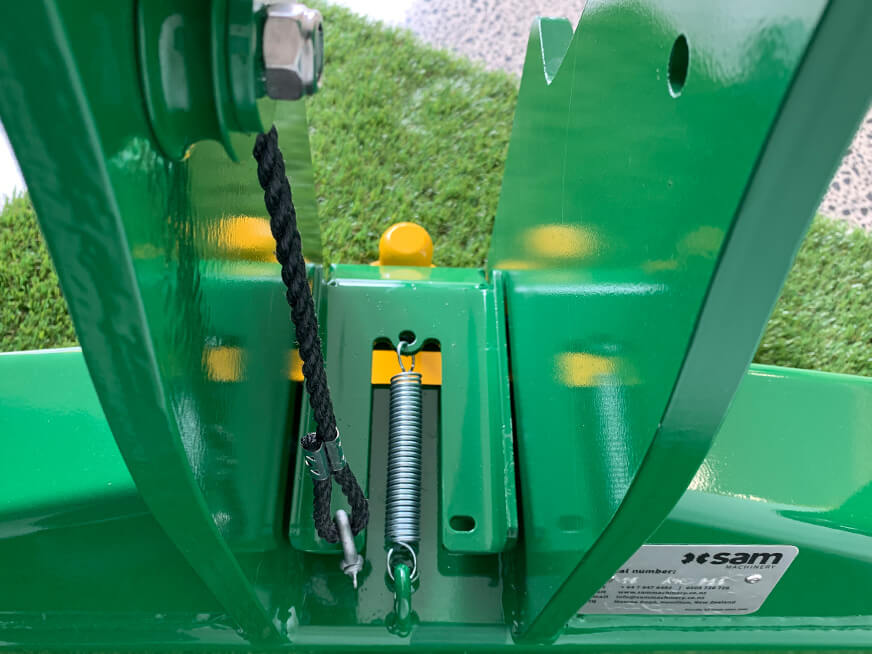

Excellent view
Superb view of your tow-pin for safe coupling and uncoupling.
-

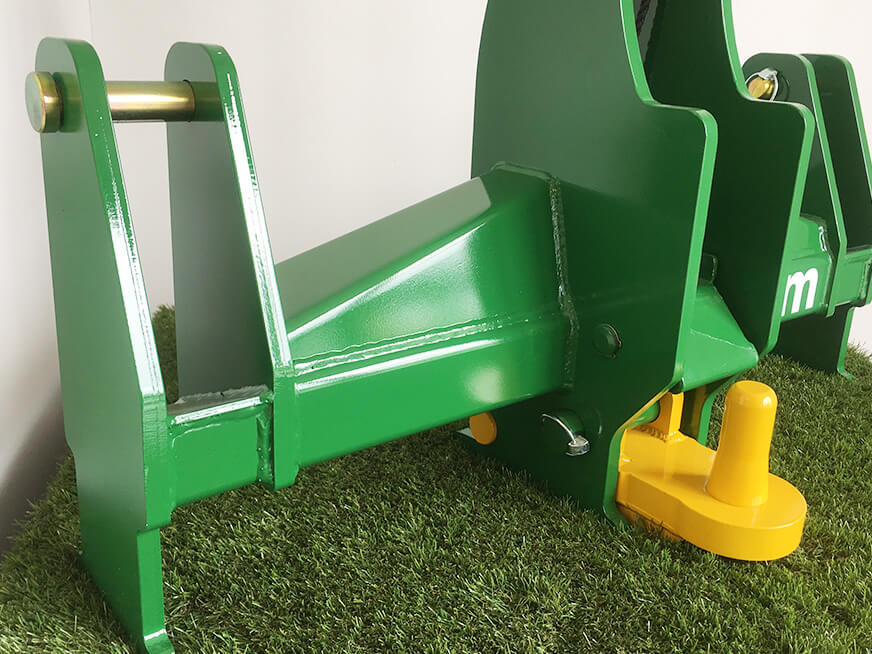

Fully-welded
The construction is full-welded which means it has been engineered with safety and strength.
-

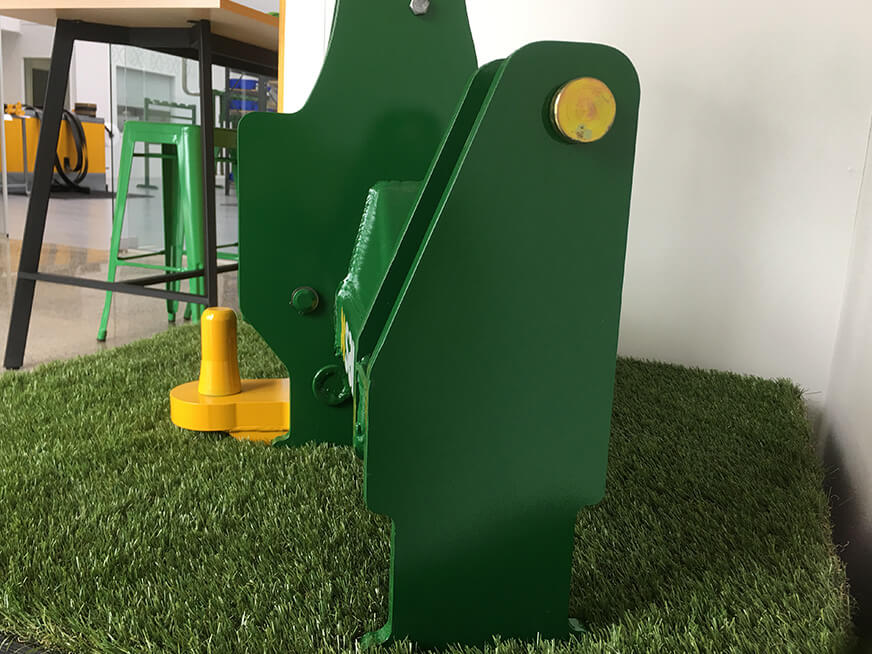

Self-supporting stand
The design stands unsupported (when you are not using it) - this means quick alignment and no unnecessary lifting.
-

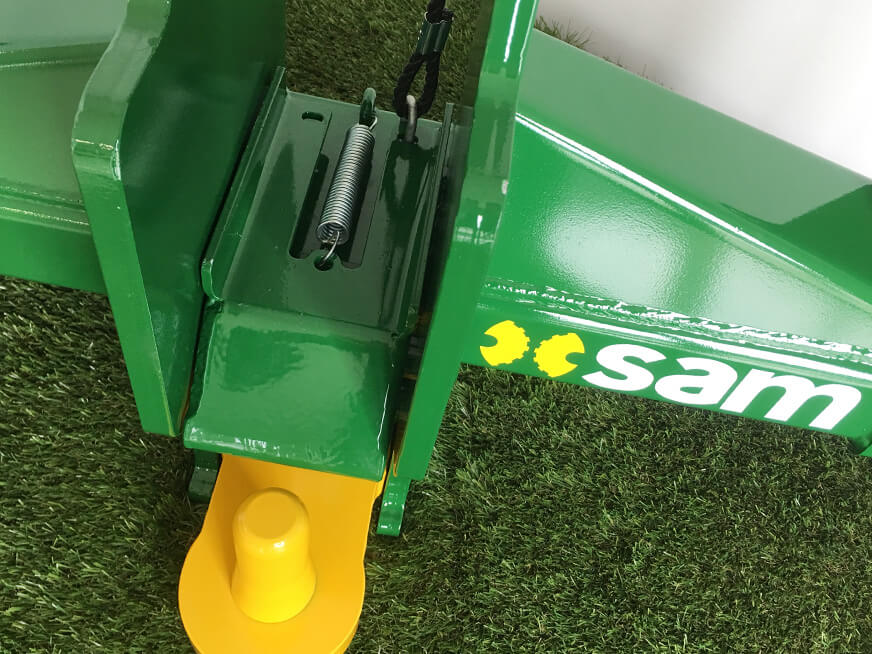

Safety latch
The safety latch fits across the tow-eye to lock in place.
-

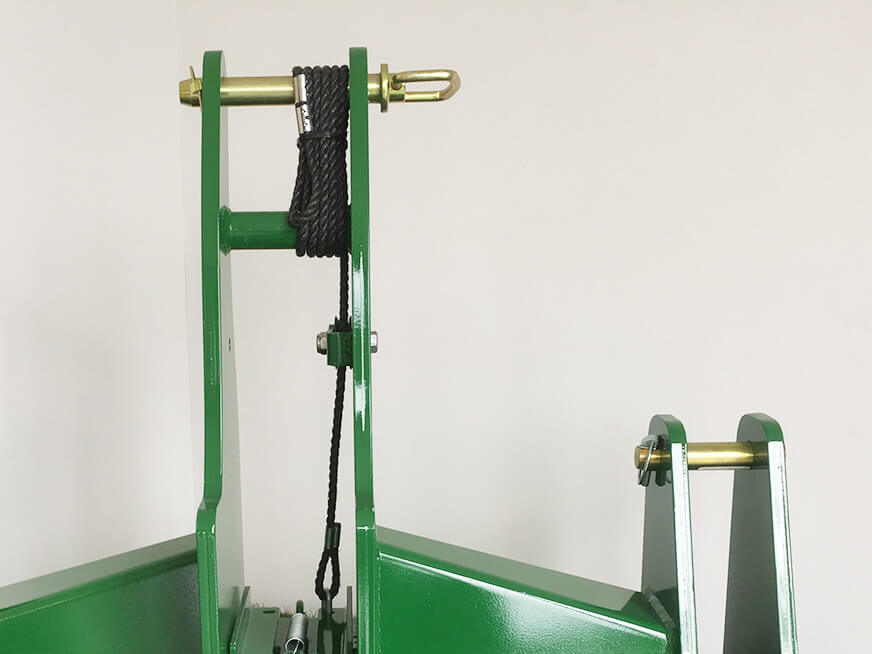

CAT-2
CAT-2 lift-arm and top pins (all are easily replaceable).
-

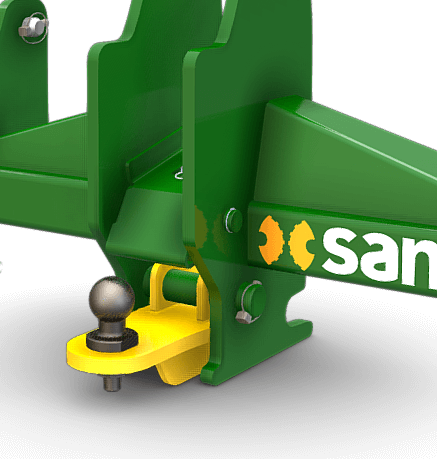

Tow ball option
There is a tow ball option available if required.
-

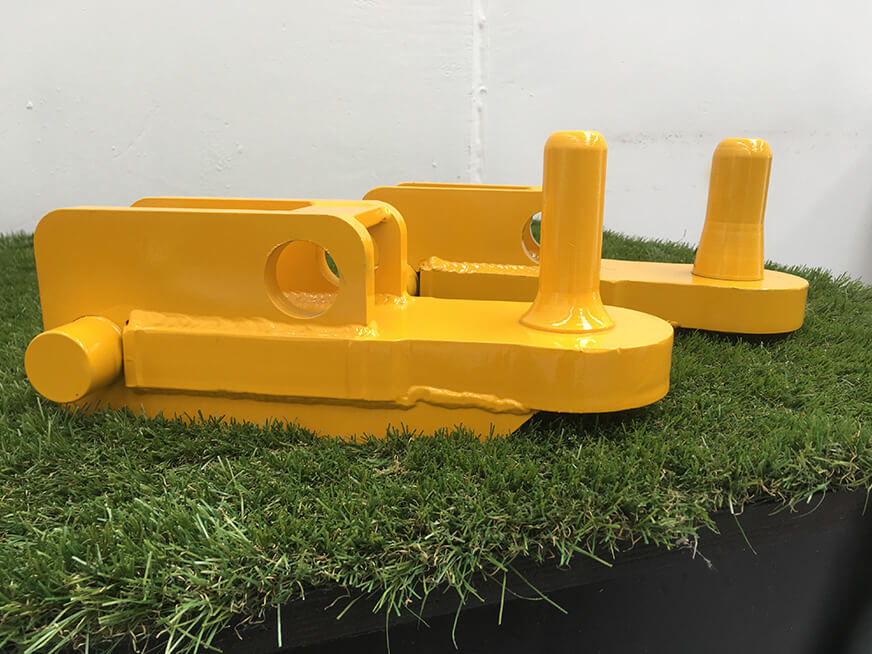

Different pin sizes
There are two tow pin sizes. The strongest and most common is the 40 millimetre to work with a 50 millimetre eye. The smaller 32 millimetre pin is made to work with a 37 millimetre eye.
-
Industry leading coating protection system
Every SAM has an advanced new paint procedure for the long-term. This application has been chosen for its hard-wearing toughness. Firstly a blast then a thermal-arc spray followed by the SAM coating difference. This industry leading coating protection system is mega tough stuff!
Specifications
- Height 730 mm
- Width 400 mm
- Length 940 mm
- Weight 95 kg
- Pin diametre 40 mm
Need help fast?
Contact your local dealer or call SAM for technical help and support.
Quality guaranteed
SAM makes quality machines and stands by them. Every implement goes through extensive quality and accuracy testing. All come with a comprehensive warranty.
